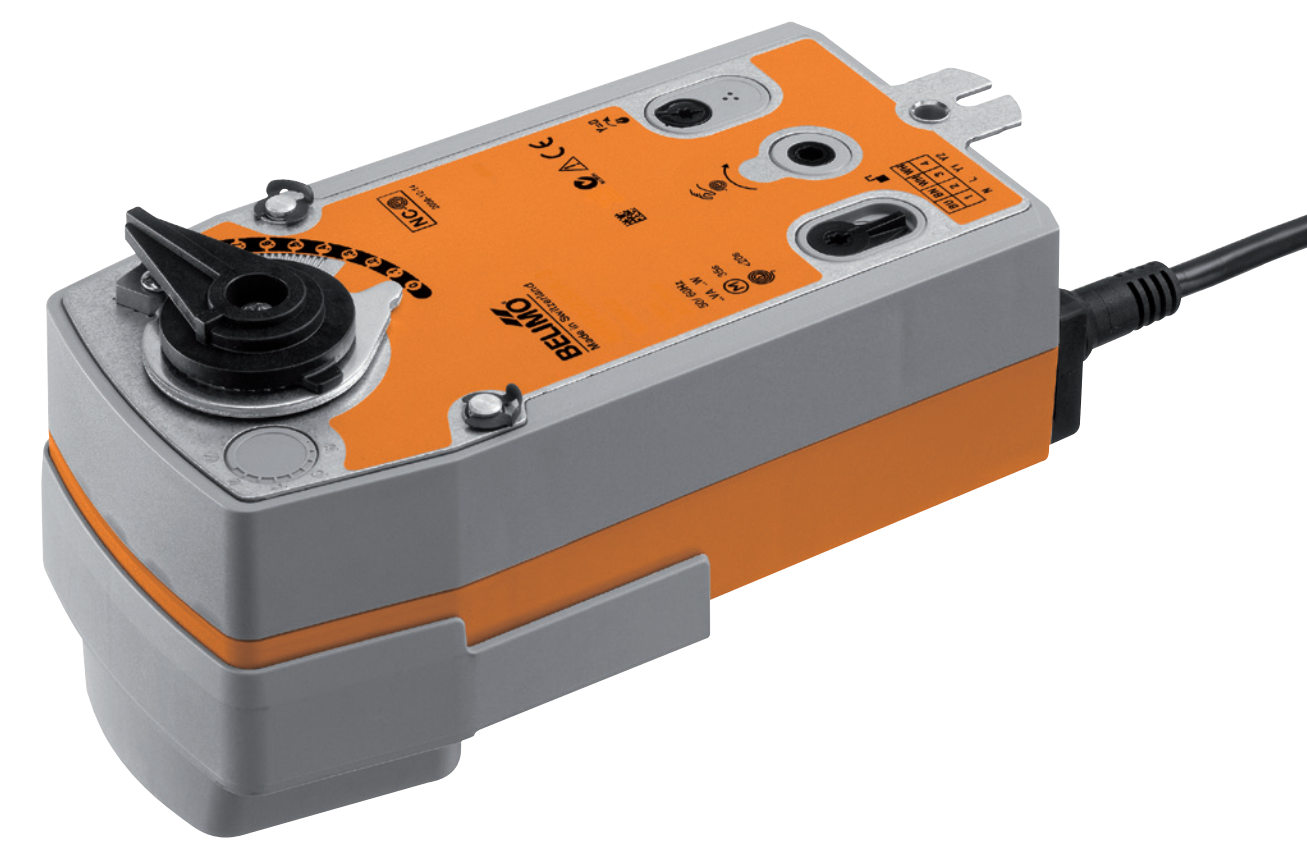

Modulating rotary actuator with emergency control function for ball valves
• Nominal torque 10 Nm
• Nominal voltage AC/DC 24 V
• Control Modulating DC 2…10 V
• Position feedback DC 2…10 V
• Deenergised closed (NC)
• Spring-return actuator NC
• 10 Nm, 90 s, 90°
• Running time spring < 20 s
• Connection PVC cable 1m
