LDM Series Lamp Driver Module

Categories:
Brand:
SKU: LDM Series Lamp Driver Module

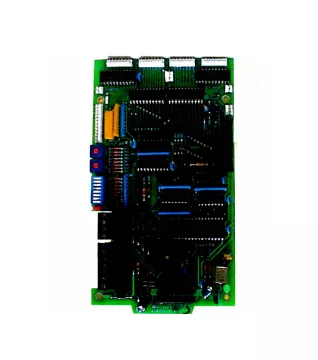

The LDM Series lamp driver modules, when combined with a custom graphic display, provide annunciation and control for Fire Lite’s intelligent fire alarm control panels. These modules use a serial communications interface, and may be located up to 6,000 feet from the panel. The Lamp Driver Module LDM-32F has 32 alarm lamp/LED driver outputs which sink current to system common (–) on activation. A single positive (+) voltage is required to supply total operating power for all lamps or LEDs when all drivers are activated. The LDM-32F provides a separate driver for system trouble and inputs for a local lamp test switch. A maximum of 16 external control switches may be wired to the LDM-32F. DIP switch SW3 is used to enable or disable the on board piezo, enable remote switch functions, select a flashing LED function for new alarms and troubles, and other functions. Switch SW4 is used to configure the module to annunciate 32 alarms or 16 troubles. A green ON LINE LED flashes to indicate ongoing communications with the host FACP. One LDM-32F supports up to 3 LDM-E32F modules. The LDM-32F is supplied with 4 standoffs and screws for mounting to a CHS-4L chassis or custom back box.

Features & Benefits:

  • Alarm/circuit ON and Trouble lamp/LED per-point option, or more dense alarm-only option (field selectable)
  • Control switch option for remote control per point
  • System trouble lamp/LED signal
  • On-line/power LED indicator
  • Alarm and trouble resound with flash of new conditions
  • Local sounder for both alarm/circuit-on and trouble conditions with silence/acknowledge switch connection
  • Serial EIA-485 interface for reduced installation costs
  • Microprocessor-controlled electronics, fully supervised
  • Plug-in terminal blocks for ease of installation and service
  • Trouble monitor option for remote power supplies

Certifications:

  • UL Listed: S2424
  • ULC Listed
  • MEA Listed: 317-01-E
  • CSFM: 7300-0075:0160
  • FM Approved
  • City of Chicago approved: Class 1, Class 2
  • City of Denver approved
